E BIKE – ZAU https://en.zau.com.tw ZAU ELECTRIC MOTORCYCLE Thu, 04 May 2023 02:22:13 +0000 en-US hourly 1 https://wordpress.org/?v=6.3.7 https://en.zau.com.tw/wp-content/uploads/sites/2/2021/07/cropped-zau_a_logo_512px-32x32.png E BIKE – ZAU https://en.zau.com.tw 32 32 EB-500 https://en.zau.com.tw/eb-500.html Tue, 07 Mar 2023 06:22:29 +0000 https://en.zau.com.tw/?p=2726
S__29573132_500px
S__29573129_500px
S__29573131_500px
Model No.EB-500
Electromotor(wheel bone motor)Permanent magnet brushless motorBLDC
Rated Voltage48V
Rated Power500W
ControllerProtection MechanismsCurrent-limiting protection
Under voltage protection
Brake power-off protection
Brake short-circuit protection
Test hall fault protection
Control MechanismFOC
Transmission System7 Speeds
SensorTorque Sensor
Brake SystemFront WheelDisk Brake System
Rear WheelDisk Brake System
Shock Absorbers(Front wheel)yes
Tyre Size20*4.0
PerformanceMax. speed25km/Hr
Auxiliary Mileage ( Fully charged )45km(ECO Auxiliary Mode)
Load Capacity≦150KG
BatteryBattery TypeLithium Battery，Extractive
Capacity13Ah
Rated Voltage48V
Battery ChargerInput VoltageAC 100 V ~ 240 V, 50/60Hz
Output VoltageDC 54.6V
Output Current3A
Charge TimeAbout 5 hours
Frame MaterialAluminum alloy
Dimensions (L x W x H)1800 × 70 × 1110 mm
Wheelbase1227mm
Weight (excluding battery weight)27.5
Weight (including battery weight)31.8kg
]]> EB-700 https://en.zau.com.tw/eb-700.html Fri, 16 Jul 2021 08:24:58 +0000 https://en.zau.com.tw/?p=2188
463A3944
463A3938
463A3953
Model No. EB-700
Color Champagne grey/Pearl white/Matte black
Motor 350W rear hub motor
Bicycle Frame/Front Fork/Handlebar Carbon Fiber
Brake System Double hydraulic disc brake
Transmision System 9 Speeds
Sensor Torque Sensor
Controller FOC
Battery 48V 9.6Ah Lithium-Ion
Charger 54.6V 2A
Charging Time About 5 hours
Tires 700*38C
Display LCD 5 assistant modes
Auxiliary Mileage 100km
Dimension 1770 x 600 x 950mm
Wheelbase 1075mm
Weight (with battery) 17.3kg

Lightweight close ratio 9-speed cassette provides high precision shifting

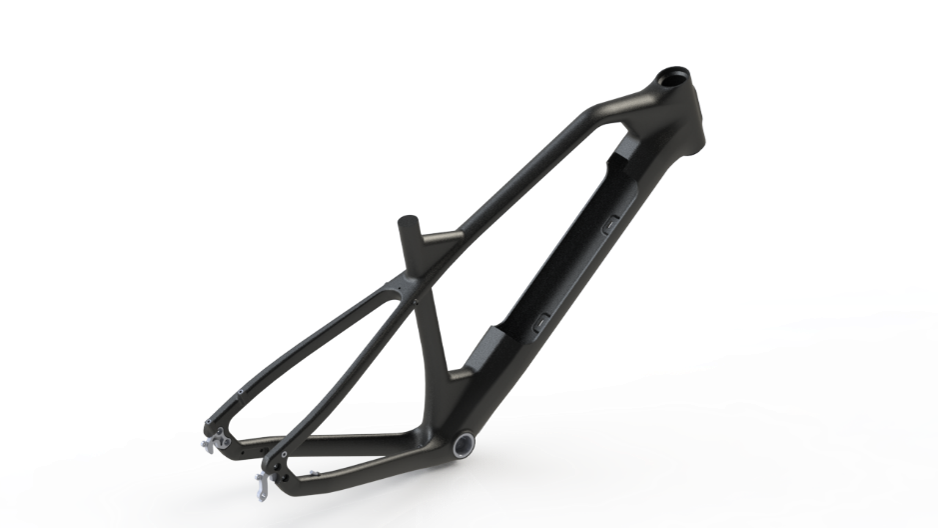

Lightweight and High Strength Carbon Fiber Frame/Front Fork/Stem

Front/Rear Hydraulic Disk brake system with enhanced modulation provides a quicker initial braking point and balance force distribution

Semi concealed cables provide a stylish clean look

Powerful 350W rear hub motor with an advanced FOC (Field Oriented Control) drive system provide a smooth ride experience

]]> IM16 https://en.zau.com.tw/electric_bicycle16.html Wed, 25 Nov 2020 07:53:09 +0000 https://www.zau.com.tw/zauen/?page_id=697
product5
product5-1
Model No. IM16
Color Anodized Silver
Electromotor
(wheel bone motor)		 Rated Voltage 36V
Rated Power 250W
Rated  Speed 400rpm
Rated Current ＜8A
Under voltage Protection value 29V
Over current Protection value 12A
Power control mode Auxiliary reaction
Controller Loop System Open-loop systems
Protection Mechanisms Current-limiting protection
Under voltage protection
Brake power-off protection
Brake short-circuit protection
Test hall fault protection
Brake system Front wheel V-brake
Rear wheel Disk brake system
Shock Absorbers Yes
Tyre Tyre Size 16″ x 2.125
Performance Grade ability 12°
Max. speed(Electric mode) <25km/Hr
Distance Per Charge 30~55 km
Charging Time 2.5~3 Hours
User Weight Limit Under 120kg
Battery Battery Type Lithium Battery
Battery Arrangement 10 in series and 3 in parallel
Capacity 6.6Ah
Rated Voltage 36V
Battery Charger Input Voltage AC100V ~ 240V, 50/60Hz
Output Voltage 42V
Output Current 3A
Charge Time 2.5 ~ 3hrs/ Full Charge
Bicycle Frame Material Aluminum alloy x-shaped folding frame
Fold Time 1 Sec
Dimension Unfold (Length × Width × High) 127 × 55 × 111(cm)
Fold (Length × Width × High) 85 × 55 × 113(cm)
Carton (Length × Width × High) 88 × 28 × 114.5(cm)
Weight Net weight 20.7 kg (With the battery weight)
Gross weight 25.5kg
]]> IM12 https://en.zau.com.tw/electric_bicycle12.html Wed, 25 Nov 2020 07:52:18 +0000 https://www.zau.com.tw/zauen/?page_id=694
product5-3
product5-4

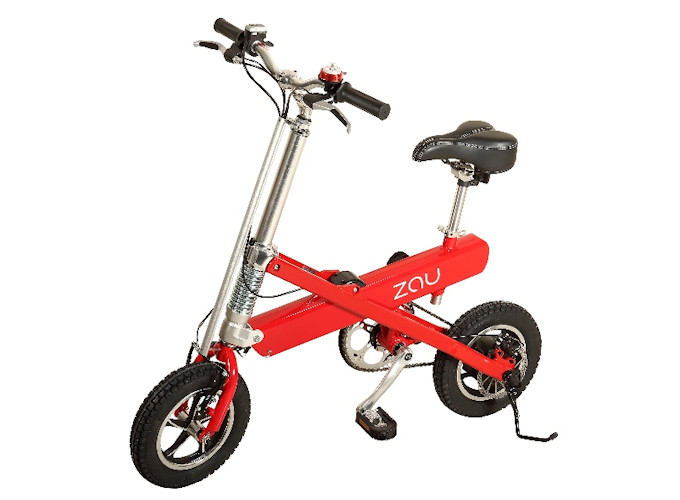

Model No. IM12
Color Black & White /  Red
Electromotor
(wheel bone motor)		 Rated Voltage 36V
Rated Power 250W
Rated  Speed 440 rpm
Rated Current ＜13.05A
Under voltage Protection value 29V
Over current Protection value 12A
Power control mode Auxiliary reaction
Controller Loop System Open-loop systems
Protection Mechanisms Current-limiting protection
Under voltage protection
Brake power-off protection
Brake short-circuit protection
Test hall fault protection
Brake system Front wheel V-brake
Rear wheel Disk brake system
Shock Absorber Yes
Tyre Tyre Size 12 1/2″ x 21/4″
Performance Grade ability 12°
Max. speed(Electric mode) <25km/Hr
Distance Per Charge 30~55 km
Charging Time 2.5~3Hours
User Weight Limit Under 120 kg
Battery Battery Type Lithium Battery
Battery Arrangement 10 in series and 3 in parallel
Capacity 6.6Ah
Rated Voltage 36V
Battery Charger Input Voltage AC100V ~ 240 V, 50/60Hz
Output Voltage 42V
Output Current 3A
Charge Time 2.5 ~ 3hrs/ Full Charge
Bicycle Frame Material Aluminum alloy x-shaped folding frame
Fold Time 1 Sec
Dimension Unfold (Length × Width × High) 118 × 55 × 107(cm)

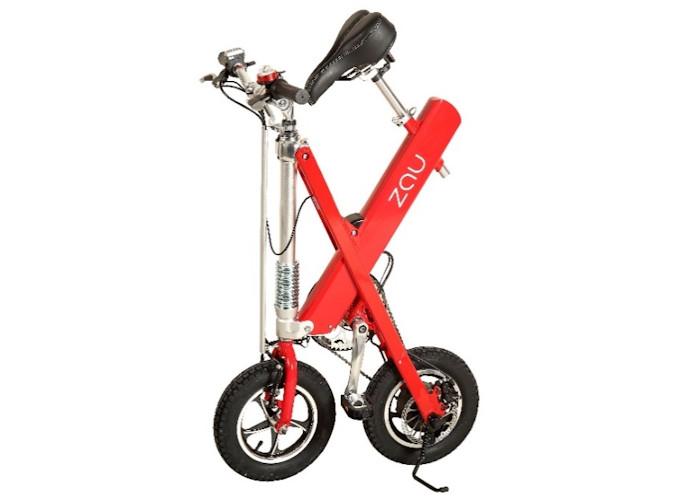

Fold (Length × Width × High) 74 × 58 × 105(cm)
Carton (Length × Width × High) 74 × 28 × 106.5(cm)
Weight Net weight 19.45 kg (With the battery weight)
Gross weight 24.5kg
]]>
